How the TubeClear System Works

How It WorksClearing Stem Models

Reusable

Control Box

TubeClear System Diagram

Single Use

Clearing Stem

TubeClear Clearing Stem Diagram

The TubeClear System is comprised of a single use Clearing Stem and a reusable Control Box. The Clearing Stem contains a specifically designed flexible Wire surrounded by a Sheath. The Clearing Stem connects to the Control Box at the Diaphragm via the Magnet. The Wire moves backward and forward.

Close-ups of the Clearing Stems’ rounded, flexible Wires.

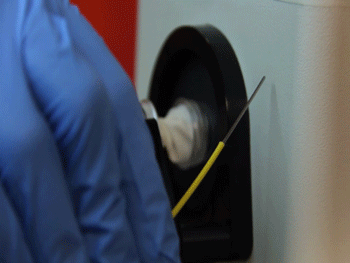

The Control Box contains a motor that moves the Clearing Stem Wire backward and forward very quickly inside the Clearing Stem.  This movement mechanically breaks up and clears clogged materials while the feeding tube remains in the patient at bedside.

The operator moves the Clearing Stem backward and forward manually for maximum effectiveness.  Various clog types require different techniques to achieve optimum effectiveness.

Clearing Stem Models

Selecting the Right Clearing Stem for Your Patient's Feeding Tube

Read the entire Operator’s Manual before using TubeClear. Disregarding the cautions and instructions presented in this manual constitutes ABNORMAL USE.

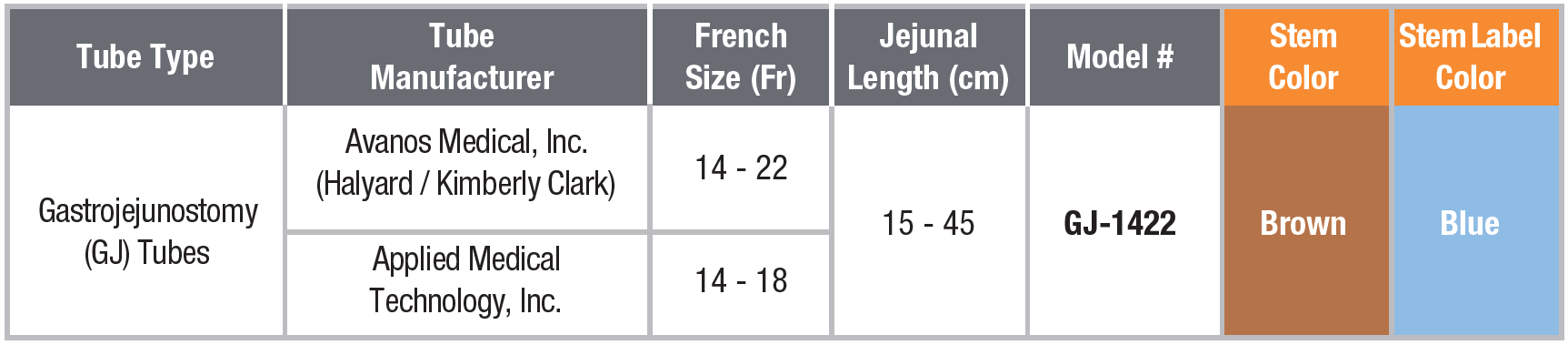

GJ-1422 Clearing Stem

Indicated for MIC®, MIC-KEY®, Traditional G-JET® and G-JET® Button Gastrojeunostomy (GJ) Tubes

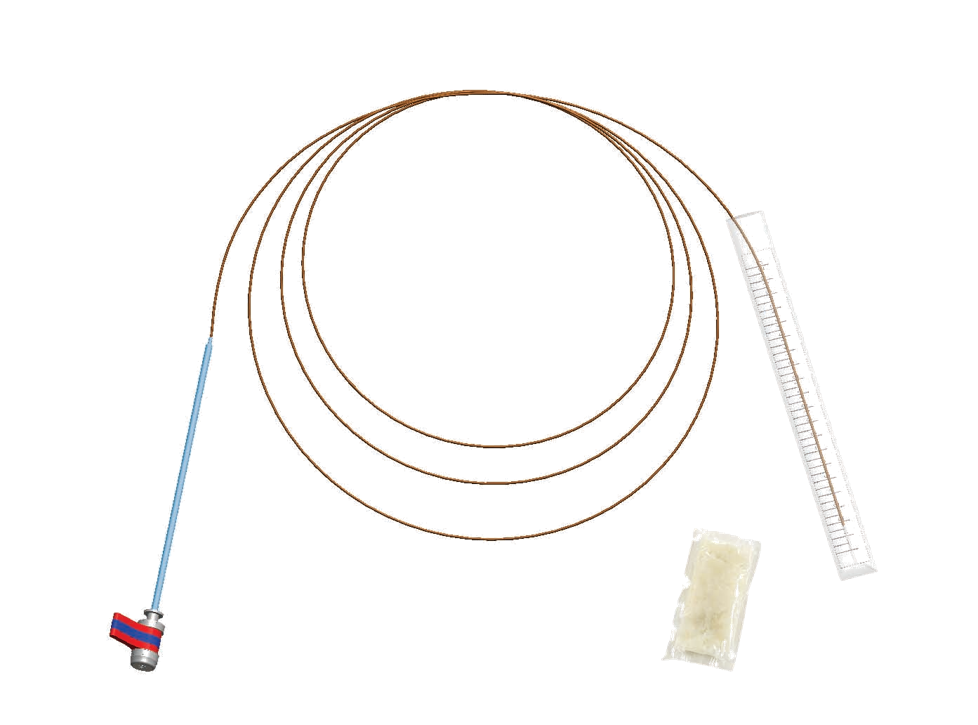

TubeClear GJ-1422 Clearing Stem

The 14-22 Fr GJ Clearing Stem Models feature an operator-set Depth Marker and come in a variety of diameters to suit your patient’s feeding tube. The GJ-1422 Clearing Stem is supplied with Coconut Oil for lubrication during the clearing process. Please refer to the appropriate Directions for Use for more information including indication, contraindications, cautions, and warnings.

TC-1018 Clearing Stem

Indicated for 10-18 French (Fr) NE, NG, NJ, J & G (PEG) from 8-55 inches

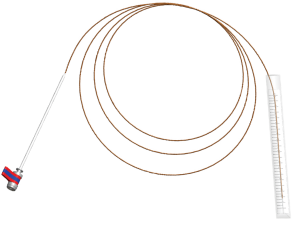

TubeClear TC-1018 Clearing Stem

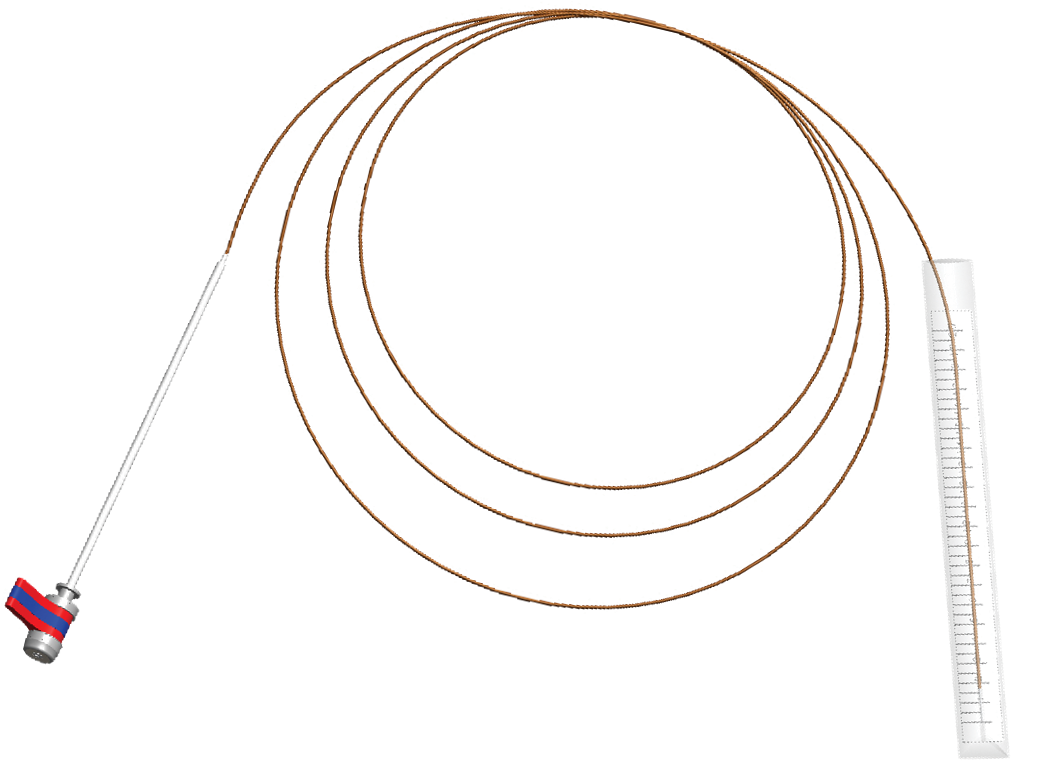

The 6-18 Fr TC Clearing Stem Models feature an operator-set Depth Marker and come in a variety of diameters to suit your patient’s feeding tube.  Please refer to the appropriate Directions for Use for more information including indication, contraindications, cautions, and warnings.

TC-0608 Clearing Stem

Indicated for 6-8 French (Fr) NE, NG, NJ, J & G (PEG) from 8-55 inches

TubeClear TC-0608 Clearing Stem

The 6-8 Fr TC Clearing Stem Models feature an operator-set Depth Marker and come in a variety of diameters to suit your patient’s feeding tube.  Please refer to the appropriate Directions for Use for more information including indication, contraindications, cautions, and warnings.

Additional Clearing Stem Models

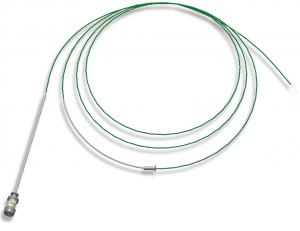

NE Models

The 10-18 Fr NE Clearing Stem Models feature a fixed Depth Marker and come in a variety of lengths to suit your patient’s EADs. Please refer to the appropriate Directions for Use for more information including indication, contraindications, cautions, and warnings.

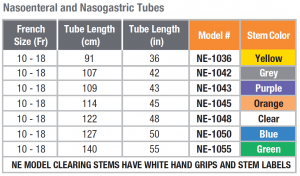

NE Clearing Stems Chart                             NE-G Clearing Stems

G Models

The 10-18 Fr G Clearing Stem Models feature a fixed Depth Marker and come in a variety of lengths to suit your patient’s EADs. Please refer to the appropriate Directions for Use for more information including indication, contraindications, cautions, and warnings.

                                                                G Clearing Stems Chart           NE-G Clearing Stems

TC-0812 Model

In addition to the two TC Model clearing stems listed above. There is a 8-12 Fr TC Clearing Stem Model available that also features the operator-set Depth Marker. Please refer to the appropriate Directions for Use for more information including indication, contraindications, cautions, and warnings.

TC Clearing StemsTC-0812 Chart
